2016 Corvette Z06 – Magnuson TVS2650 Supercharger

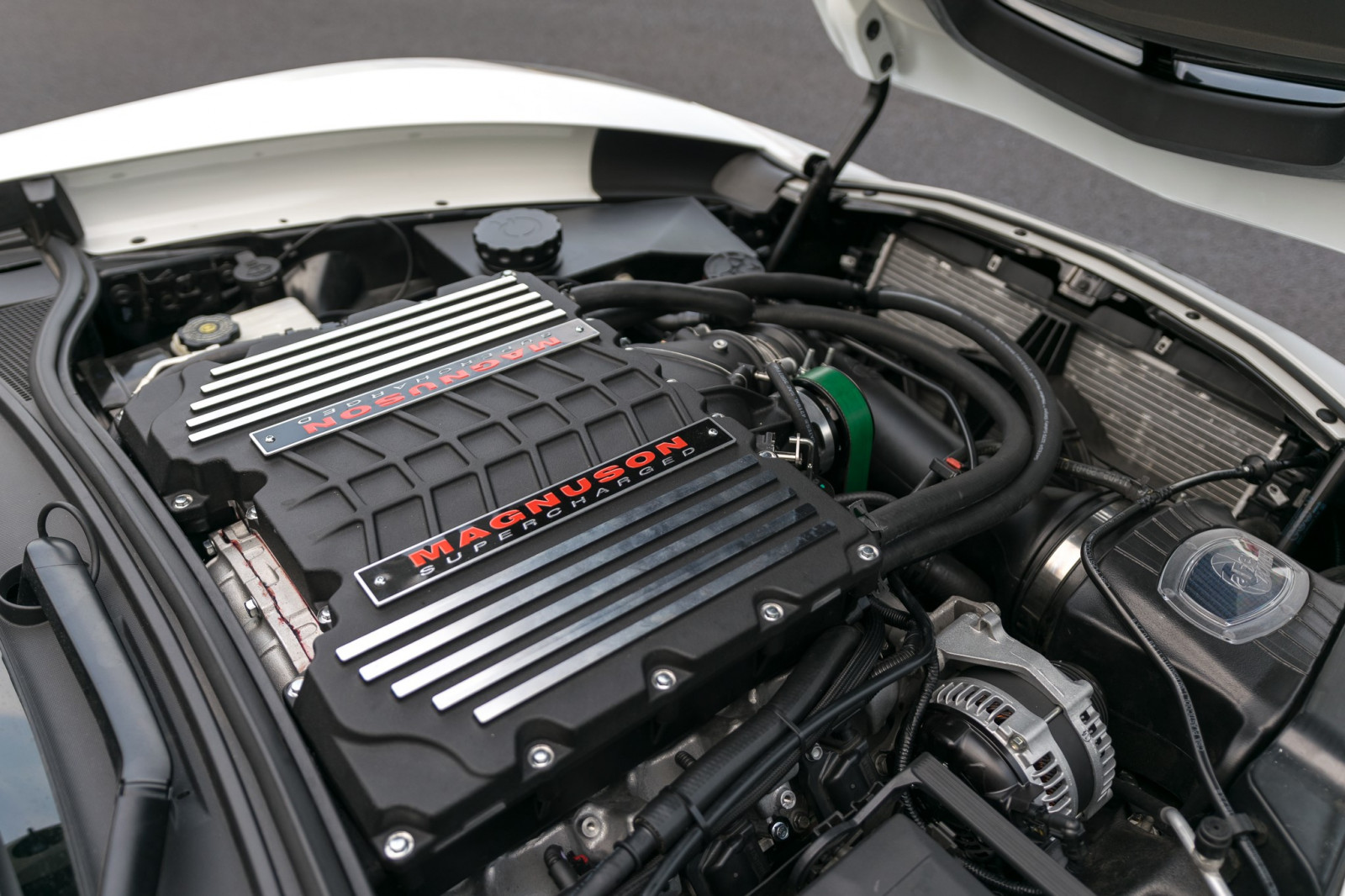

Gary’s 2016 Chevrolet Corvette Z06 is now Magnuson TVS2650R equipped, Flex Fuel enabled, and laying down 800whp! This is the second round of work for this beautiful C7Z, and needless to say, Gary really took it up a notch this go-round!
All worked performed by us below:
• Magnuson Superchargers TVS2650R supercharger system
• Magnuson Superchargers 90mm/3.54" upper supercharger pulley
• Dedicated Motorsports 10mm wider supercharger idler pulley
• Gates HD Fleetrunner Micro-V "Green" supercharger belt
• ATI Performance Products Super Damper with 8.800"/10% overdrive pulley
• Texas Speed & Performance VVT-1 camshaft with 32% HPFP lobe
• COMP Cams camshaft phaser lockout
• OEM GMPP Corvette C5.R/C6.R/C7.R timing chain
• Cam Motion AFM/DOD block-off plugs
• Brian Tooley Racing valve spring set
• Brian Tooley Racing push rods
• Texas Speed trunnion bearing upgrade
• OEM GM Gen-IV LSx lifter guides
• Johnson Lifters 2110 hydraulic roller lifters
• ARP Pro Series cylinder head bolts
• aFe POWER Momentum air-intake system
• Stainless Works 2.00" primary ID long-tube headers
• NGK Spark Plugs LTR7IX-11 spark plugs
• MSD Performance spark plug wires
• Design Engineering, Inc. spark plug Protect-a-Boots
• DSX Tuning auxiliary fuel pump system
• DSX Tuning Flex Fuel conversion
• Cordes Performance Racing & Sales supercharger expansion tank
• AFCO Racing heat exchanger
• Lingenfelter Performance Engineering 160° thermostat
• Mightymouse Solutions catch can
With the second round of mechanical work wrapped up in the shop by Dylan, John strapped her back down to the rollers for a custom calibration by Vlad via HP Tuners. With ~E70 in the tank, Vlad increased output to 797.52whp & 777.80lbft! And with the TVS2650R only generating ~14psi, there's MUCH more jam in the jar when Gary gets that itch!
